Measuring Guide

Follow these simple steps to ensure you get the perfect fit for your new wardrobes.

Preparation

Firstly you need to check if the walls, floor and ceiling are level with a spirit level. If not then you will be able to use our liners which will enable you to use packers (not supplied). Please keep in mind that if you are fitting onto carpet, we strongly recommend that a floor liner is used.

The top track is designed to fix to the ceiling. If your ceiling is not level then we recommend building a bulk head to drop the height down so you have something level to fix too.

If your walls are more than 10mm out of level then we would recommend using wall liners to build a frame.

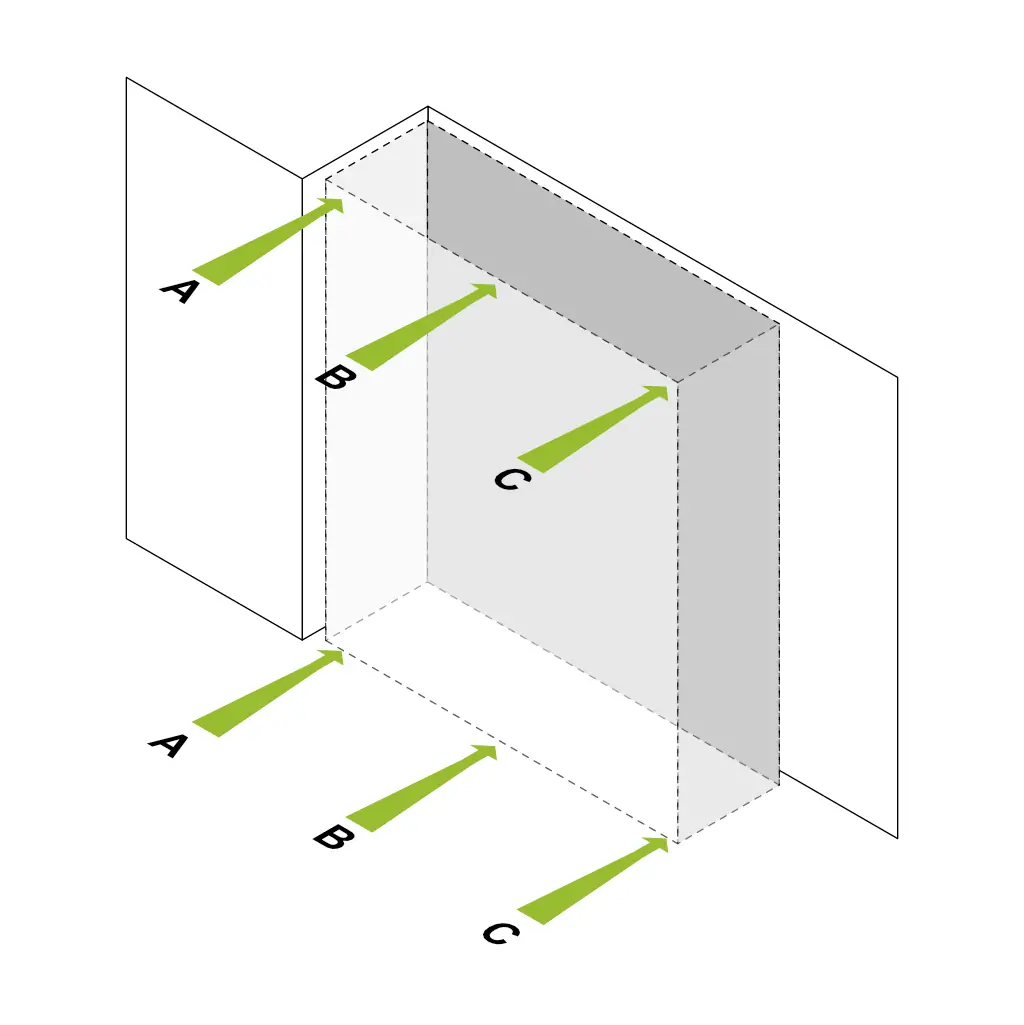

Measuring Height

Our doors allow for up to 15mm variation in height difference over the span of your wardrobes. Please measure the 3 points as indicated on the diagram at the depth of the wardrobes (usually 600mm from the back wall) and enter the smallest dimension.

Measuring Height
Measuring Width

Check the walls with a spirit level to see if they are straight. Our optional liners can be used to make sure your doors are installed to a level wall. Please allow for the removal of any skirting or coving that may be in the way. This will need to be cut out during the installation.

PLEASE NOTE – Our tracks and end panels are supplied over length to be cut on site.

Measuring WIDTH

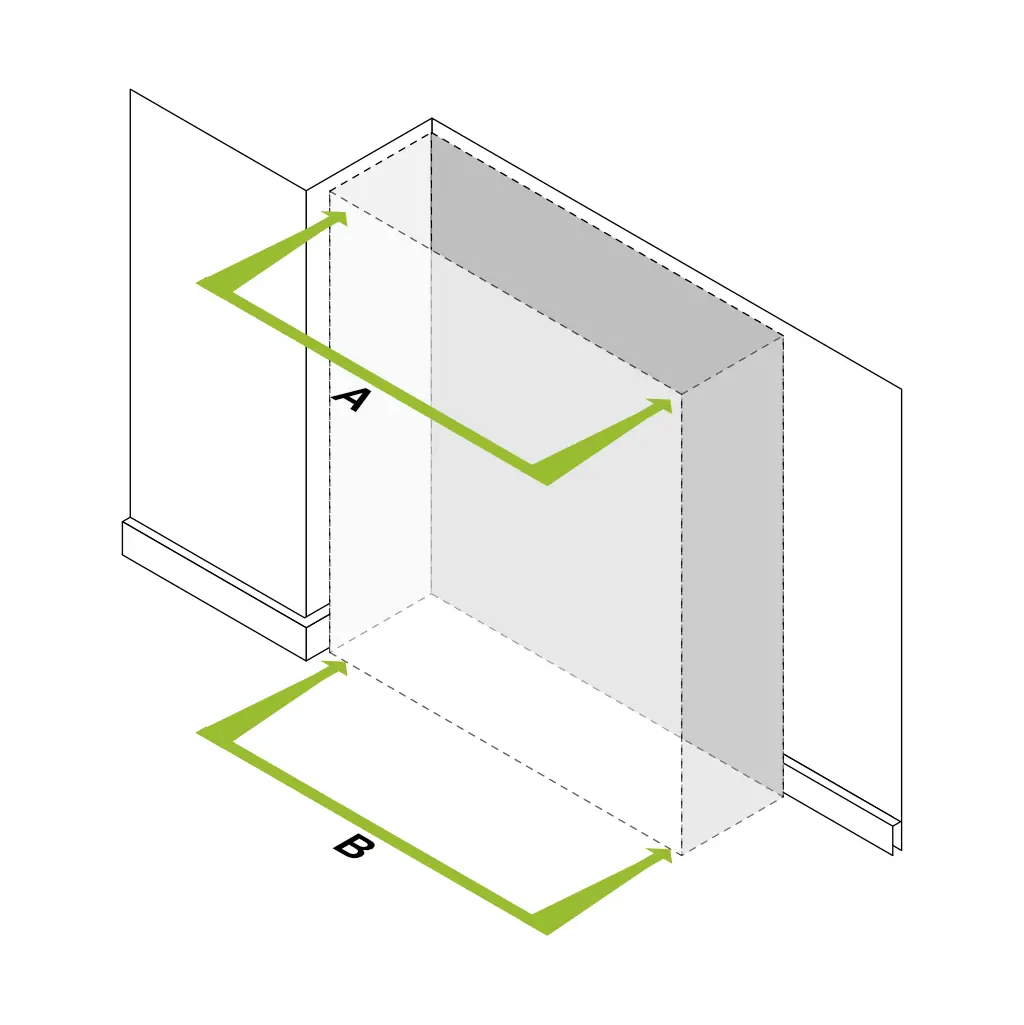

Wall to Wall

Check the walls with a spirit level to see if they are straight. Our optional liners can be used to make sure your doors are installed to a level wall. Please allow for the removal of any skirting or coving that may be in the way. This will need to be cut out during the installation.

PLEASE NOTE – Our tracks and end panels are supplied over length to be cut on site.

Wall to End Panel or End Panel to End Panel

Check the walls with a spirit level to see if they are straight. Our optional liners can be used to make sure your doors are installed to a level wall. Please allow for the removal of any skirting or coving that may be in the way. This will need to be cut out during the installation.

PLEASE NOTE – Our tracks and end panels are supplied over length to be cut on site.

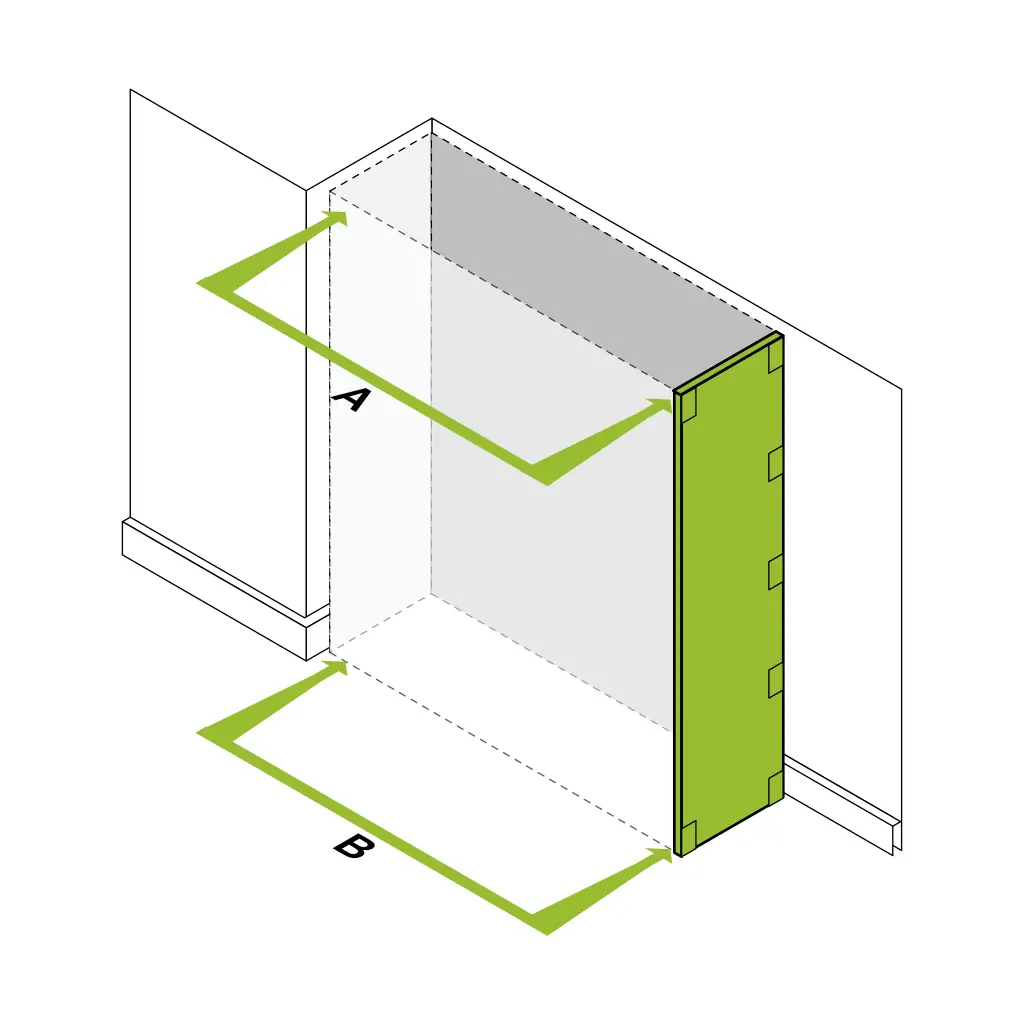

Wall to End Panel

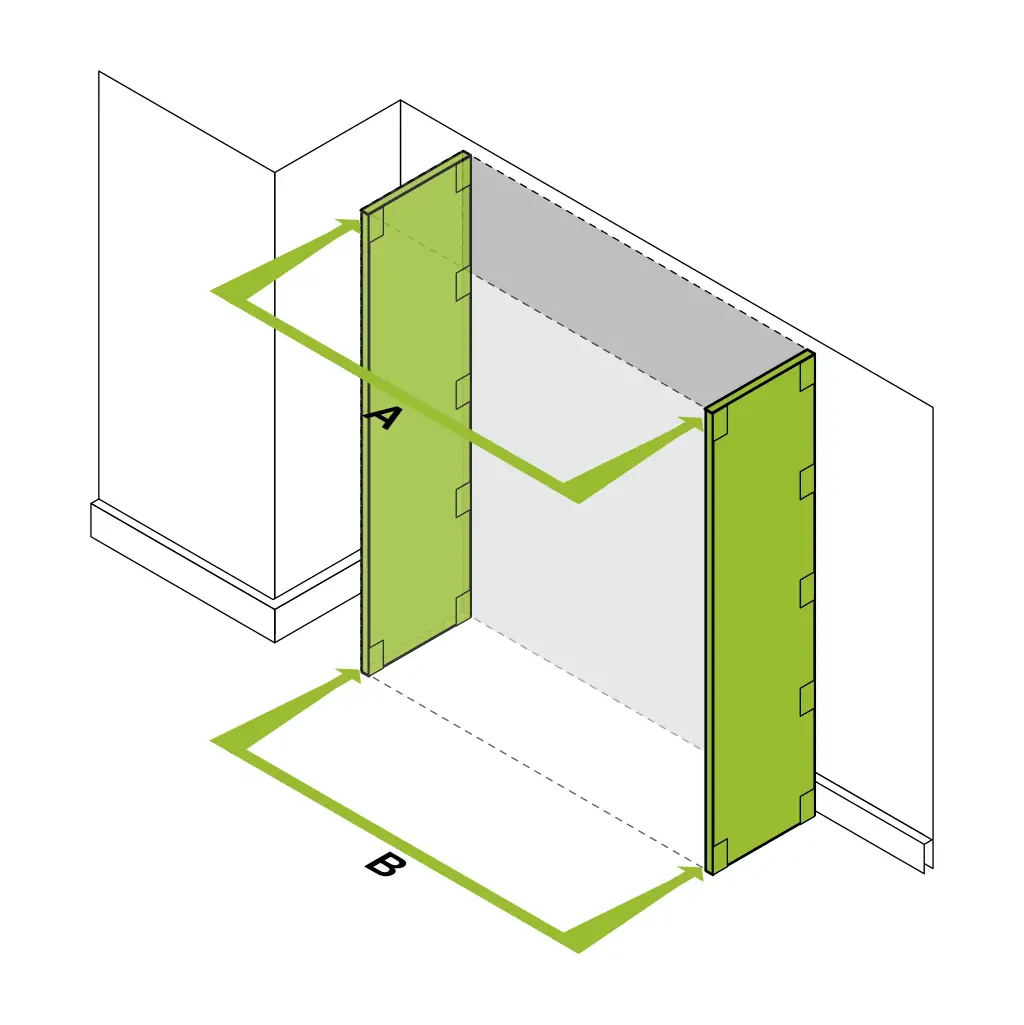

End Panel to End Panel
Wall to Wall

Inside a built frame

If you have built a level frame, please supply us with the inside edge measurements.

PLEASE ENSURE ALL MEASUREMENTS ARE TAKEN ACCURATELY. WE CANNOT REFUND OR EXCHANGE ANY PRODUCTS DUE TO INCORRECT SIZES BEING PROVIDED.
